NeoTek
Streamline your assembly line with NeoTek, the next-generation smart tool solution.
NeoTek
NeoTek streamlines your assembly line with the next generation of smart tool solutions, combining high performance, durability, and ease of use. Engineered to deliver 1 million maintenance-free cycles, NeoTek maintains class-leading repeatability with a Cmk > 2.0, ±7%. Its lightweight, ergonomic design reduces operator fatigue, while programmable features such as high-output LED light rings and audible alerts enhance usability and productivity in demanding industrial environments.
Features
- Engineered for 1 million maintenance-free cycles
- High accuracy and repeatability: Cmk > 2.0, ±7%
- Lightweight, ergonomic design reduces operator fatigue
- Fully programmable features including high-output LED light rings and audible alerts
- Improves productivity and usability in high-volume assembly
- Next-generation smart tool solution for modern manufacturing

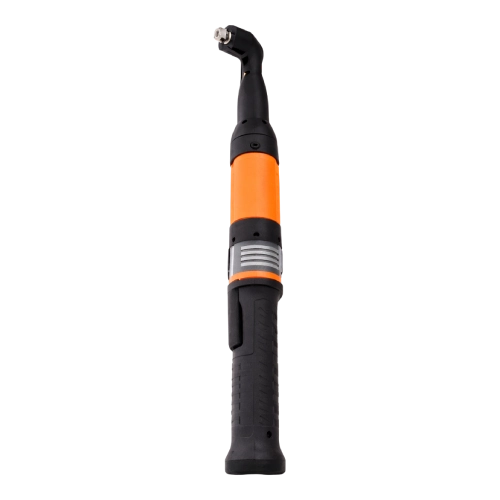

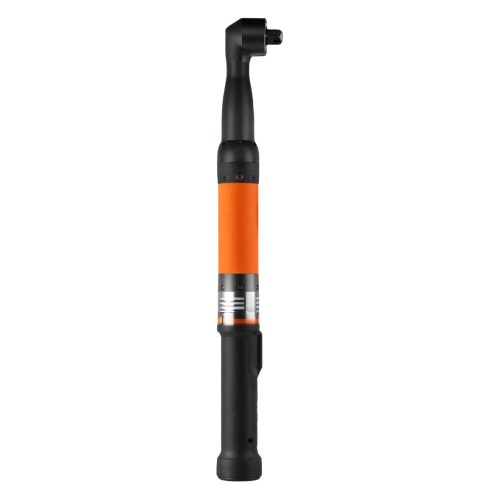

- 30 SERIES RIGHT ANGLE
- 50 SERIES RIGHT ANGLE
- 70 SERIES RIGHT ANGLE

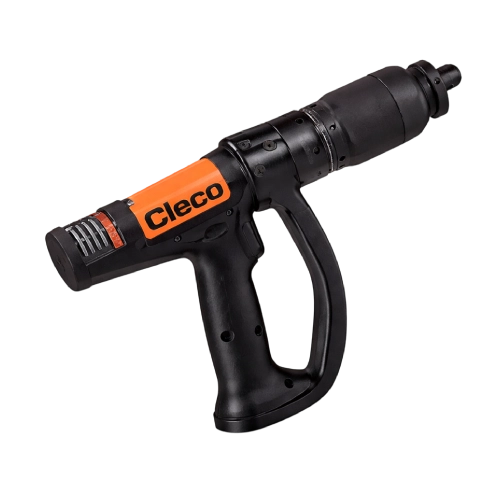

- 30 SERIES PISTOL
- 50 SERIES PISTOL

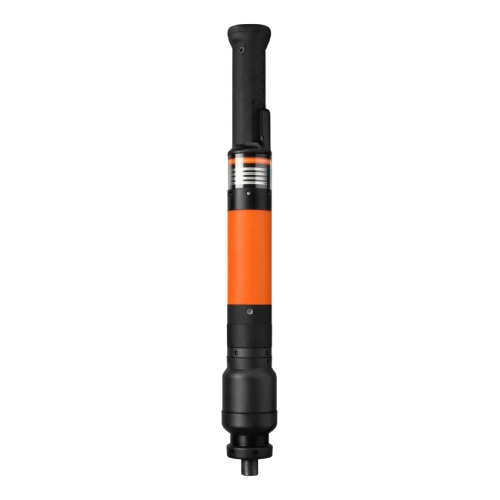

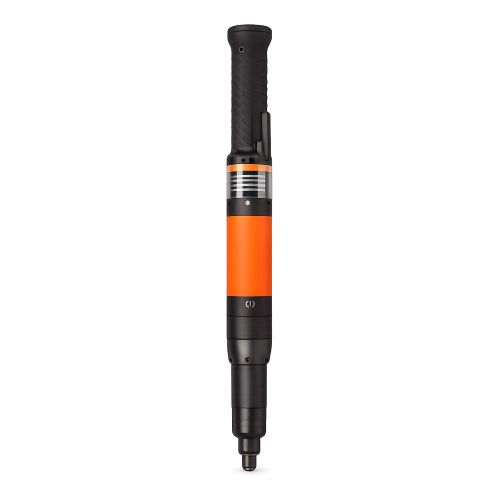

- 30 SERIES INLINE
- 50 SERIES INLINE
- 70 SERIES INLINE
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED (r/min) |
WEIGHT | LENGTH mm / in |
SIDE TO CENTER mm / in |
HEIGHT mm / in |
OUTPUT DRIVE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | ||||||
| 30EAN06EA3 | 1.3 | 6 | 0.9 | 4.4 | 2925 | 1.13 | 2.49 | 380 / 14.96 | 12.3 / 0.48 | 36.0 / 1.42 | 3/8” Sq. Drive |
| 30EAN12EA3 | 2.6 | 12 | 1.9 | 8.8 | 1450 | 1.14 | 2.51 | 380 / 14.96 | 12.3 / 0.48 | 36.0 / 1.42 | 3/8” Sq. Drive |
| 30EAN21FA3 | 4.4 | 21 | 3.2 | 15.4 | 835 | 1.32 | 2.91 | 408 / 16.06 | 16.4 / 0.65 | 40.3 / 1.58 | 3/8” Sq. Drive |
| 30EAN28FA3 | 5.7 | 28 | 4.2 | 20.6 | 615 | 1.32 | 2.91 | 408 / 16.06 | 16.4 / 0.65 | 40.3 / 1.58 | 3/8” Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH mm / in |
SIDE TO CENTER mm / in |
HEIGHT mm / in |
OUTPUT DRIVE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | ||||||
| 50EAN30FA3 | 6 | 30 | 4.4 | 22.1 | 1765 | 1.60 | 3.53 | 449 / 17.68 | 16.4 / 0.65 | 40.3 / 1.58 | 3/8” Sq. Drive |
| 50EAN39GA3 | 8 | 39 | 5.9 | 28.7 | 1375 | 1.77 | 3.90 | 462 / 18.19 | 16.7 / 0.66 | 44.6 / 1.76 | 3/8” Sq. Drive |
| 50EAN59HA3 | 12 | 59 | 8.8 | 43.5 | 915 | 1.94 | 4.28 | 464 / 18.27 | 19.0 / 0.75 | 51.4 / 2.02 | 3/8” Sq. Drive |
| 50EAN80JA4 | 16 | 80 | 11.8 | 59.0 | 670 | 2.17 | 4.78 | 473 / 18.62 | 22.8 / 0.90 | 48.5 / 1.91 | 1/2” Sq. Drive |
| 50EAN110KA4 | 22 | 109 | 16.2 | 80.3 | 475 | 2.76 | 6.08 | 493 / 19.41 | 25.3 / 1.00 | 60.3 / 2.37 | 1/2” Sq. Drive |
| 50EAN150KB4 | 32 | 150 | 23.6 | 110.6 | 320 | 3.75 | 8.27 | 559 / 22.01 | 26.2 / 1.03 | 64.5 / 2.54 | 1/2” Sq. Drive |
| 50EAN205NA6 | 41 | 205 | 30.2 | 151.2 | 250 | 3.93 | 8.66 | 562 / 22.13 | 29.5 / 1.16 | 62.0 / 2.44 | 3/4” Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH mm / in |
SIDE TO CENTER mm / in |
HEIGHT mm / in |
OUTPUT DRIVE | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | ||||||
| 70EAN155NA6 | 39 | 156 | 28.7 | 115.0 | 740 | 6.50 | 14.33 | 637 / 25.07 | 29.5 / 1.16 | 62.0 / 2.44 | 3/4” Sq. Drive |
| 70EAN205NA6 | 52 | 205 | 38.3 | 151.1 | 555 | 6.50 | 14.33 | 637 / 25.07 | 29.5 / 1.16 | 62.0 / 2.44 | 3/4” Sq. Drive |
| 70EAN240PA6 | 60 | 239 | 44.2 | 176.2 | 480 | 7.00 | 15.43 | 655 / 25.78 | 38.0 / 1.49 | 68.2 / 2.68 | 3/4” Sq. Drive |
| 70EAN350PA6 | 88 | 350 | 64.9 | 258.1 | 325 | 7.00 | 15.43 | 655 / 25.78 | 38.0 / 1.49 | 68.2 / 2.68 | 3/4” Sq. Drive |
| 70EAN600SA8T | 200 | 800 | 92 | 443 | 190 | 10.8 | 23.8 | 674 / 26.5 | 25.9 / 1.02 | 93.8 / 3.7 | 1” Sq. Drive |
| 70EAN800TA8MT | 200 | 800 | 148 | 590 | 115 | 11.6 | 25.5 | 659 / 25.9 | 42 / 1.6 | 205 / 8.1 | 1” Sq. Drive |
| 70EAN1500TA8MT | 375 | 1500 | 277 | 1106 | 90 | 11.6 | 25.5 | 659 / 25.9 | 42 / 1.6 | 205 / 8.1 | 1” Sq. Drive |
| 70EAN2000TB8MT | 500 | 2000 | 369 | 1475 | 35 | 14.7 | 32.4 | 677 / 26.6 | 58 / 2.3 | 231 / 9.1 | 1” Sq. Drive |
| 70EAN4000UA12MT | 1250 | 4000 | 922 | 2950 | 17 | 18.8 | 41.6 | 677 / 26.6 | 58 / 2.3 | 238 / 9.4 | 1-1/2” Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH mm / in |
SIDE TO CENTER mm / in |
OUTPUT DRIVE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | |||||
| 30EPN05BD2 | 0.9 | 4.7 | 0.6 | 3.4 | 4275 | 0.93 | 2.00 | 197 / 7.75 | 16.3 / 0.64 | 1/4″ Sq. Drive |
| 30EPN05BDQ | 0.9 | 4.7 | 0.6 | 3.4 | 4275 | 0.91 | 2.16 | 210 / 8.26 | 16.3 / 0.64 | 1/4″ QC. Drive |
| 30EPN12FA3 | 3.9 | 11.6 | 2.8 | 8.5 | 1650 | 0.98 | 2.20 | 214 / 8.42 | 16.3 / 0.64 | 3/8″ Sq. Drive |
| 30EPN12EAQ | 3.9 | 11.6 | 2.8 | 8.5 | 1650 | 1.00 | 2.20 | 229 / 9.01 | 16.3 / 0.64 | 1/4″ QC Drive |
| 30EPN19FB3 | 3.9 | 19 | 2.8 | 14.0 | 1000 | 1.00 | 2.20 | 214 / 8.42 | 16.3 / 0.64 | 3/8″ Sq. Drive |
| 30EPN26FC3 | 5.1 | 26 | 3.7 | 19.1 | 750 | 1.00 | 2.20 | 214 / 8.42 | 16.3 / 0.64 | 3/8″ Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH mm / in |
SIDE TO CENTER mm / in |
OUTPUT DRIVE | |||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | |||||
| 50EPN28FD3 | 5.6 | 28 | 4.1 | 20.6 | 2125 | 1.58 | 3.48 | 256 / 10.07 | 16.3 / 0.64 | 3/8″ Sq. Drive |
| 50EPN43GD3 | 9 | 43 | 6.6 | 31.7 | 1375 | 1.65 | 3.64 | 260 / 10.23 | 18.9 / 0.74 | 3/8″ Sq. Drive |
| 50EPN65HD4 | 14 | 66 | 10.3 | 48.6 | 900 | 2.14 | 4.72 | 288 / 11.33 | 22.0 / 0.86 | 1/2″ Sq. Drive |
| 50EPN85JD4 | 17 | 84 | 12.5 | 61.9 | 670 | 2.22 | 4.85 | 302 / 11.88 | 22.0 / 0.86 | 1/2″ Sq. Drive |
| 50EPN125KD4 | 25 | 123 | 18.4 | 90.7 | 455 | 2.62 | 5.78 | 313 / 12.32 | 28.0 / 1.10 | 1/2″ Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH | SIDE TO CENTER | OUTPUT DRIVE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | mm | in | mm | in | |||
| 30ESN05BD2 | 0.9 | 4.7 | 0.6 | 3.4 | 4275 | 0.96 | 2.12 | 337 | 13.26 | 16.3 | 0.64 | 1/4″ Sq. Drive |
| 30ESN05BDQ | 0.9 | 4.7 | 0.6 | 3.4 | 4275 | 0.96 | 2.12 | 342 | 13.46 | 16.3 | 0.64 | 1/4″ QC Drive |
| 30ESN12FA3 | 3.9 | 11.6 | 2.8 | 8.5 | 1650 | 1.06 | 2.34 | 357 | 14.05 | 16.3 | 0.64 | 3/8″ Sq. Drive |
| 30ESN12EAQ | 3.9 | 11.6 | 2.8 | 8.5 | 1650 | 1.06 | 2.34 | 361 | 14.21 | 16.3 | 0.64 | 1/4″ QC Drive |
| 30ESN19FB3 | 3.9 | 19 | 2.8 | 14 | 1000 | 1.06 | 2.34 | 357 | 14.05 | 16.3 | 0.64 | 3/8″ Sq. Drive |
| 30ESN26FC3 | 5.1 | 26 | 3.7 | 19.1 | 750 | 1.06 | 2.34 | 357 | 14.05 | 16.3 | 0.64 | 3/8″ Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH | SIDE TO CENTER | OUTPUT DRIVE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | mm | in | mm | in | |||
| 50ESN28FD3 | 5.6 | 28 | 4.1 | 20.6 | 2125 | 1.35 | 2.98 | 399 | 15.70 | 16.3 | 0.64 | 3/8″ Sq. Drive |
| 50ESN43GD3 | 9.0 | 43 | 6.6 | 31.7 | 1375 | 1.65 | 3.64 | 403 | 15.86 | 18.9 | 0.74 | 3/8″ Sq. Drive |
| 50ESN65HD4 | 14 | 66 | 10.3 | 48.6 | 900 | 1.90 | 4.19 | 435 | 17.13 | 22.0 | 0.87 | 1/2″ Sq. Drive |
| 50ESN85JD4 | 17 | 84 | 12.5 | 61.9 | 670 | 2.00 | 4.41 | 449 | 17.68 | 22.0 | 0.87 | 1/2″ Sq. Drive |
| 50ESN125KD4 | 25 | 123 | 18.4 | 90.7 | 455 | 2.40 | 5.29 | 460 | 18.11 | 28.0 | 1.10 | 1/2″ Sq. Drive |
| MODEL NUMBER | TORQUE RANGE NM | TORQUE RANGE ft-lb | SPEED r/min |
WEIGHT | LENGTH | SIDE TO CENTER | OUTPUT DRIVE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| min | max | min | max | kg | lb | mm | in | mm | in | |||
| 70ESN95ND6 | 23 | 93 | 16.9 | 68.5 | 1325 | 5.20 | 11.46 | 566 | 22.28 | 33.1 | 1.30 | 3/4″ Sq. Drive |
| 70ESN130ND6 | 31 | 124 | 22.8 | 91.4 | 1000 | 5.20 | 11.46 | 566 | 22.28 | 33.1 | 1.30 | 3/4″ Sq. Drive |
| 70ESN185ND6 | 46 | 184 | 33.9 | 135.7 | 680 | 5.20 | 11.46 | 566 | 22.28 | 33.1 | 1.30 | 3/4″ Sq. Drive |
| 70ESN245ND6 | 61 | 245 | 45.7 | 180.7 | 510 | 5.20 | 11.46 | 566 | 22.28 | 33.1 | 1.30 | 3/4″ Sq. Drive |
| 70ESN355SD8 | 89 | 354 | 65.6 | 261.0 | 335 | 7.60 | 16.76 | 610 | 24.01 | 38.0 | 1.49 | 1″ Sq. Drive |
| 70ESN475SD8 | 118 | 473 | 87.0 | 348.8 | 250 | 7.60 | 16.76 | 610 | 24.01 | 38.0 | 1.49 | 1″ Sq. Drive |
| 70ESN700SD8 | 175 | 699 | 129.0 | 515.5 | 170 | 7.60 | 16.76 | 610 | 24.01 | 38.0 | 1.49 | 1″ Sq. Drive |
| 70ESN850SD8 | 213 | 850 | 157.1 | 626.9 | 128 | 7.60 | 16.76 | 610 | 24.01 | 38.0 | 1.49 | 1″ Sq. Drive |
